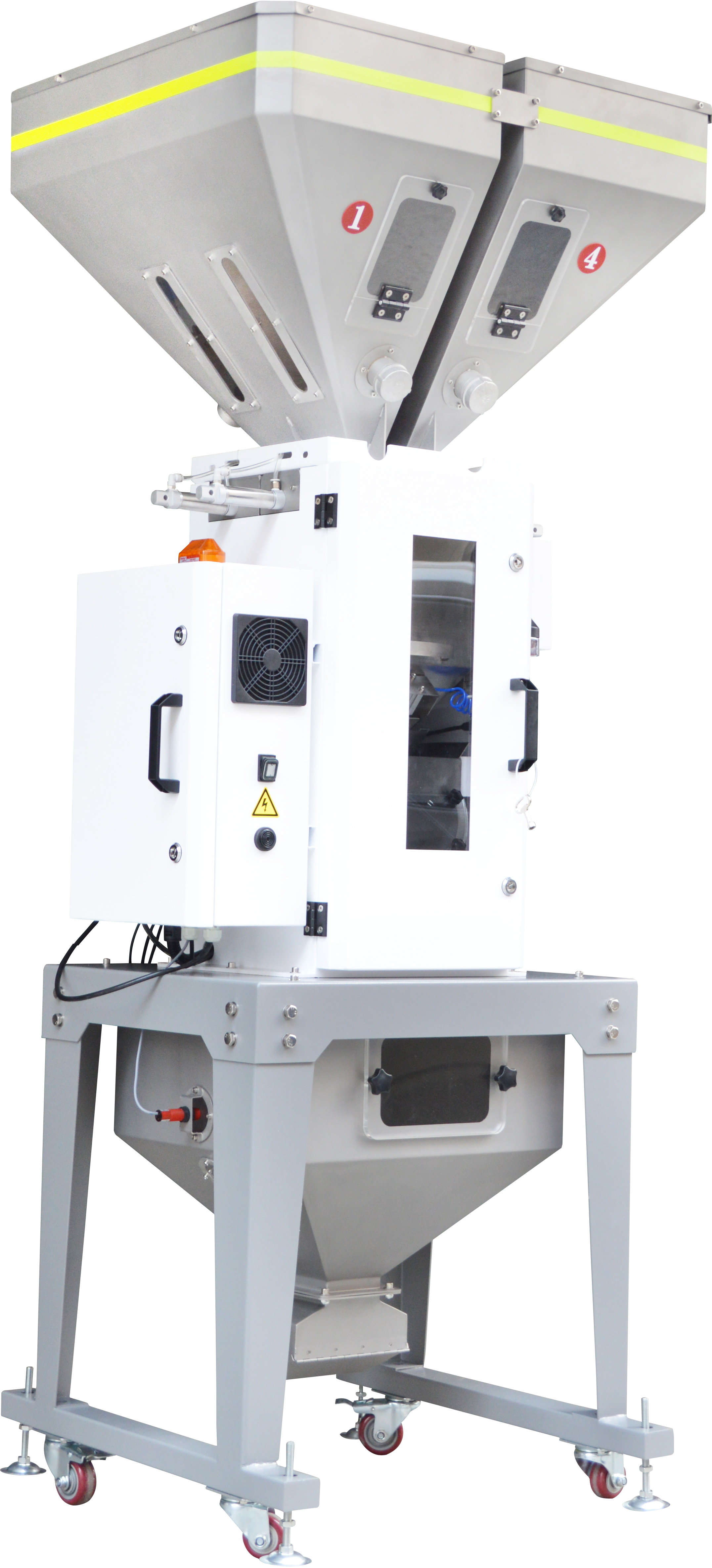

稱重式拌料機 WEIGHING MIXER

本機特點

模塊化可拆卸式結構設計，節省空間與清潔方便；

采用通用型PLC控制器，確保性能可靠，維護簡便；

采用先進的控制算法，自主優化，自動調校補償及震動防止功能，保證的配料精度；

標準機型多可處理四種組份（六組份以上可定制）；

彩色圖形式顯示，觸摸屏式操作，多種語言供選擇；

具有配方存儲功能，多可存儲100組以上配方；

分級安全密碼控制與報警歷史記錄功能；

控制器標準配置USB2.0接口，可將混料配比數據保存到U盤中，便于生產質量控制；

具備聲、光報警器，便于設備員快速準確的達到故障機器現場；

所有與原料接觸的部分都由不銹鋼材料制成，防止原料被污染；

可直接安裝在機器上或選配腳架安裝在機器旁（含氣動式卸料閥）。

Features

The modulized components can be disassembled for easy cleaning.

The adopted PLC panel shows reliable performance and easy maintenance.

The adopted functions such as advanced algorithm of controlling, autonomous optimization, automatic calibration and anti-vibration, can ensure the highest accuracy.

The standard models can process four dosing. (Six-dosing modules can be customized)

Touch screen operation is achieved with multiple languages option and diagrams with colors.

Up to 100recipes can be stored for later use;

The gravimetric blender is adopted with Multilevel password protection and keep alarm records;

Standard USB2.0 interface is easy for saving recipe data into flash disk, and hence fulfill the quality  control management;

With sound and flash alarm, operators can be informed shortly and evidently for reparation.

All raw material contact parts are made of stainless steel, which can prevent the materials being polluted;

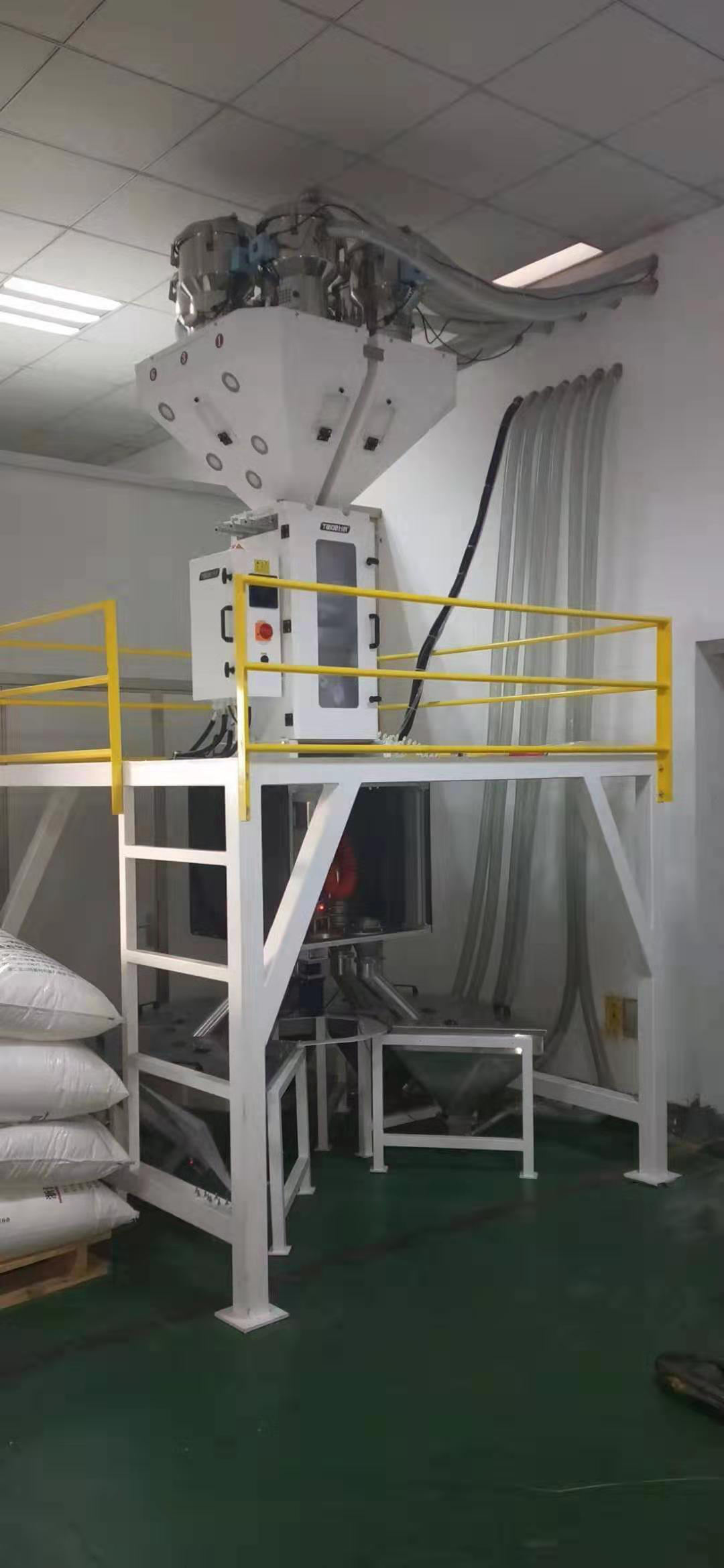

The gravimetric blender can be directly mounted on the injection machine or optional stand frame near the injection machine.

選配件Optional components

料斗低料位警報開關；

吸料控制1/0模塊；

氣動式卸料閥（用于直接安裝機臺上方平臺或架子）；

腳架、氣動式卸料閥、儲料桶及吸料盒（適用腳架安裝型）；

以太網接口、MODBUS、PROFIBUS通訊模塊，可實現遠程監控，并與擠出機、注塑機等主機進行的數據交換。

Hopper low material level alarm switch.

Automatic loading control module.

Pneumatic slide gate(adapted for injection machine mounting models).

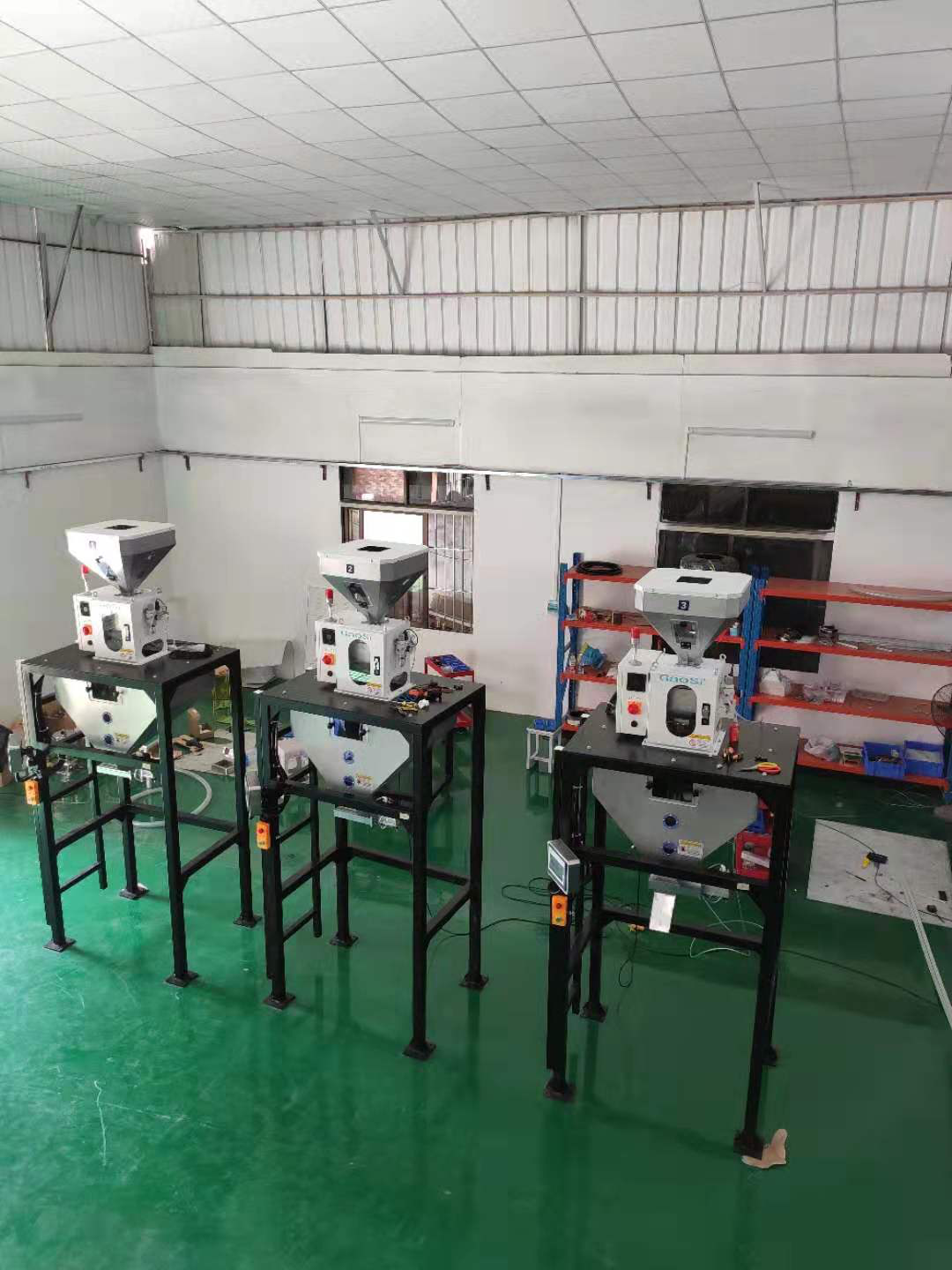

Floor stand frame, pneumatic slide gate, storage tank and suction box are adapted for floor mounting models.

Ethernet interface,MODBUS,PROFIBUS communication modules, can fulfill the remote monitoring. They can also transfer data with extrusion machines and injection machines .

參數表

注：1) 混合配比誤差是指各組份的設定百分比與實際百分比的差值；

2) 標準閥門不適用于粉體計量；

3) 以上大處理量和混合配比誤差數據是以堆積密度0.8kg/L直徑3-4mm、數據會根據原料的特性而變化，如使用不確定物料，請另行商討。

為3~4 mm的顆粒均勻原料以連續運轉方式測量所得的數據。

note：1) Dosing accuracy are refer to each ingredient accuracy ；

2) standard valves are not suitable powder dosing；

3) Max .output of each model and dosing accuracy are based on the data from bulk density 0.8 ,dia. 3~4mm pellets in a test criteria of continuous running.

產品規格若有變更，恕不另行通知。

We reserve the right to change specifications without prior notice .
